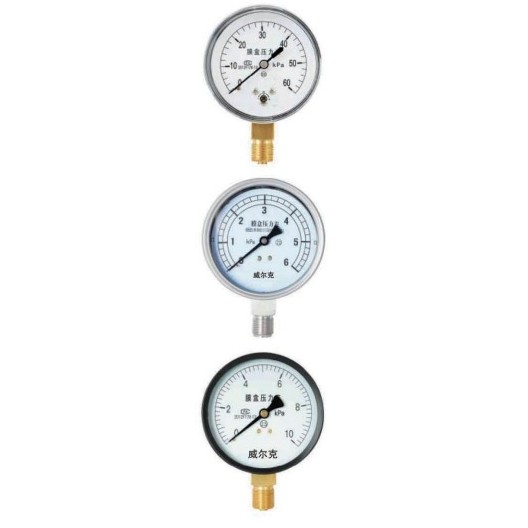

Capsule Low-Pressure Gauge
- For micro pressure and negative pressure of non-corrosive gases
- Ranges 0-6KPa, 0-10KPa, 0-16KPa, 0-25KPa, 0-40KPa, 0-60KPa, 0-100KPa
- Dial sizes 3″ (60 mm), 4″ (100 mm), 5″ (150 mm)
- Stainless steel version for corrosion-demanding processes
- Threads 1/4″, 3/8″ BSP, BSPT, NPT, M14x1.5, M20x1.5
- Accuracy class 2.5
Tell us your medium, range and process connection — we reply within 24 hours.
Factory-direct from WELK Meters
- Small MOQ Welcome
- OEM / ODM Support
- Reply Within 24 Hours
Overview
The capsule (diaphragm-capsule) pressure gauge measures micro pressure and negative pressure of non-corrosive gases, with low ranges from 0-6KPa up to 0-100KPa and dial sizes of 3″ (60 mm), 4″ (100 mm) and 5″ (150 mm). Accuracy class is 2.5.
Its capsule sensing element is designed for very low gas pressures that ordinary Bourdon-tube gauges cannot resolve, making it the standard choice for boiler draft, gas pipelines and burner monitoring. A stainless steel version is available for processes with higher corrosion-resistance demands.
Available ranges are 0-6KPa, 0-10KPa, 0-16KPa, 0-25KPa, 0-40KPa, 0-60KPa and 0-100KPa, with connection threads of 1/4″ and 3/8″ in BSP, BSPT and NPT standards plus M14x1.5 and M20x1.5.
Features
- Capsule element for micro pressure and negative pressure of non-corrosive gases
- Seven low ranges from 0-6KPa to 0-100KPa
- Dial sizes 3″ (60 mm), 4″ (100 mm), 5″ (150 mm)
- Stainless steel version for corrosion-demanding processes
- Thread options: 1/4″, 3/8″ BSP, BSPT, NPT, M14x1.5, M20x1.5
- Accuracy class 2.5
Specifications
| Parameter | Value |
|---|---|
| Measured media | Non-corrosive gases (micro pressure / negative pressure) |
| Dial size | 3″ (60 mm), 4″ (100 mm), 5″ (150 mm) |
| Measuring ranges | 0-6KPa, 0-10KPa, 0-16KPa, 0-25KPa, 0-40KPa, 0-60KPa, 0-100KPa |
| Case option | Stainless steel version for corrosion-demanding processes |
| Connection threads | 1/4″, 3/8″ BSP, BSPT, NPT, M14x1.5, M20x1.5 |
| Accuracy | Class 2.5 |
Applications
- Boiler draft measurement
- Gas pipelines
- Burners
- Other micro-pressure and negative-pressure points on non-corrosive gas systems
FAQ
What pressures can a capsule gauge measure?
It measures micro pressure and negative pressure of non-corrosive gases, with ranges from 0-6KPa up to 0-100KPa — far lower than standard Bourdon-tube gauges.
Is there a corrosion-resistant version?
Yes, a stainless steel version is available for processes with higher corrosion-resistance demands.
How do I select the right range and connection?
Contact us with your medium, range and process connection; we respond within 24 hours.
