80 GHz Radar Level Meter (WKD18 / KJD-80)
- 80 GHz high-frequency FMCW radar with WKD18 sensor
- Maximum measuring distance up to 70 m
- Narrow beam and small antenna for easy installation
- Unaffected by steam, dust, foam, temperature and pressure variation

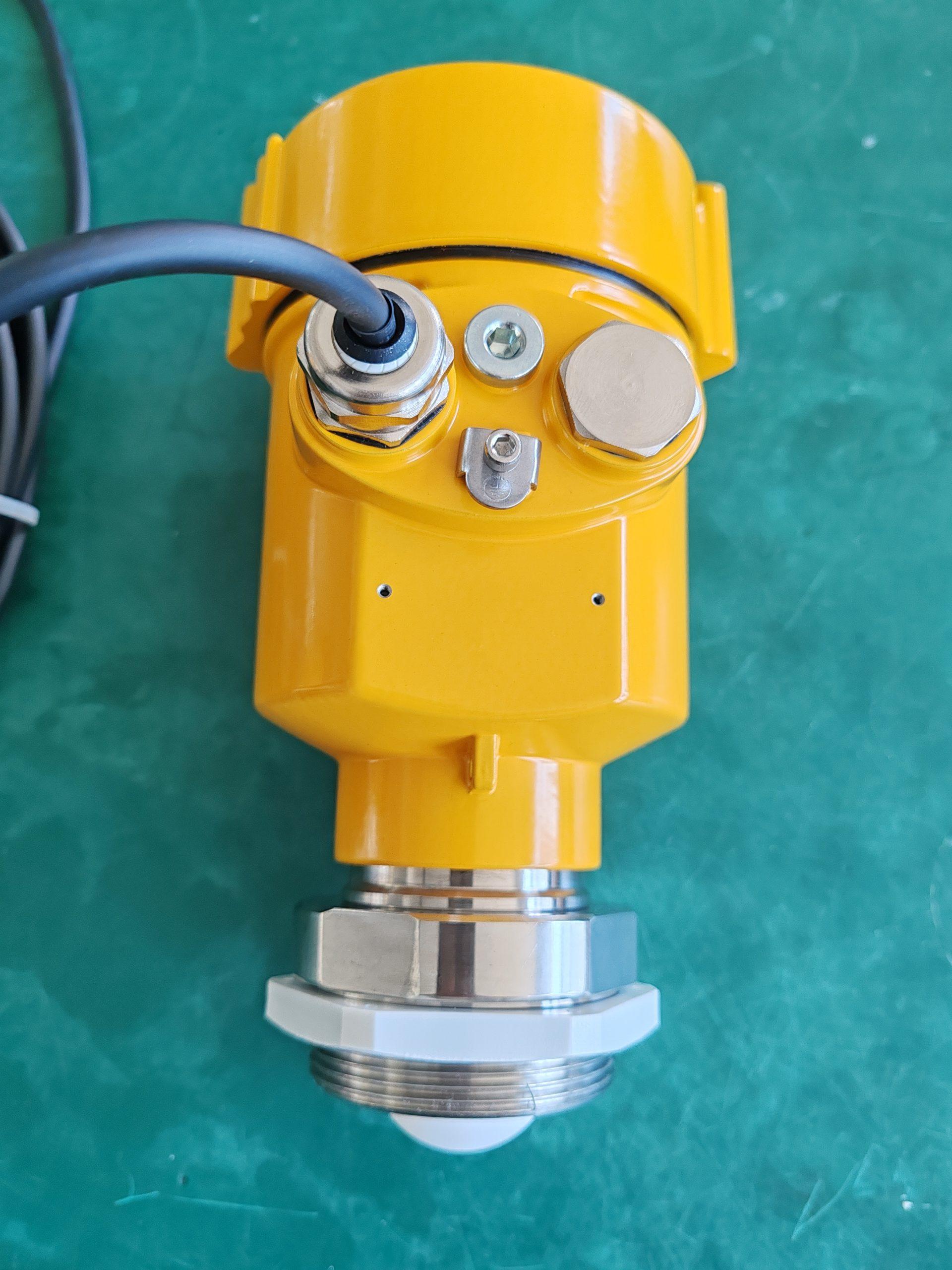

- Threaded base or flange sealing mount
- Suited to low-dielectric media and solids/powder silos
Tell us your medium, range and process connection — we reply within 24 hours.
Factory-direct from WELK Meters
- Small MOQ Welcome
- OEM / ODM Support
- Reply Within 24 Hours
Overview
The 80 GHz radar level meter is a non-contact, high-frequency FMCW radar instrument built around the WKD18 sensor, measuring liquid and solid levels at distances of up to 70 m. Operating at 80 GHz, it produces a narrow beam from a small antenna, simplifying installation and reducing interference from tank internals.
Per the feature list, measurement is unaffected by steam, dust, foam, and temperature and pressure variation, making the meter suitable for difficult process conditions where ultrasonic devices struggle. The high operating frequency also suits low-dielectric media and solids/powder silos.
The meter mounts via a threaded base or flange sealing connection and is offered in the models KJD-80B, KJD-80D and KJD-80E. Setup uses four parameter codes: A (range setting), B (low-position adjustment), C (high-position adjustment) and D (blind-zone range). Contact WELK Meters with your vessel and medium details for model selection.
Features
- 80 GHz high-frequency FMCW measuring principle
- Maximum measuring distance up to 70 m
- Narrow beam and small antenna
- Unaffected by steam, dust, foam, temperature and pressure variation
- Threaded base or flange sealing mount
- Suitable for low-dielectric media and solids/powder silos
- Simple parameter setup: A range setting, B low adjust, C high adjust, D blind zone
Specifications
| Parameter | Value |
|---|---|
| Measuring principle | 80 GHz high-frequency FMCW radar |
| Sensor | WKD18 |
| Models | KJD-80B, KJD-80D, KJD-80E |
| Maximum measuring distance | Up to 70 m |

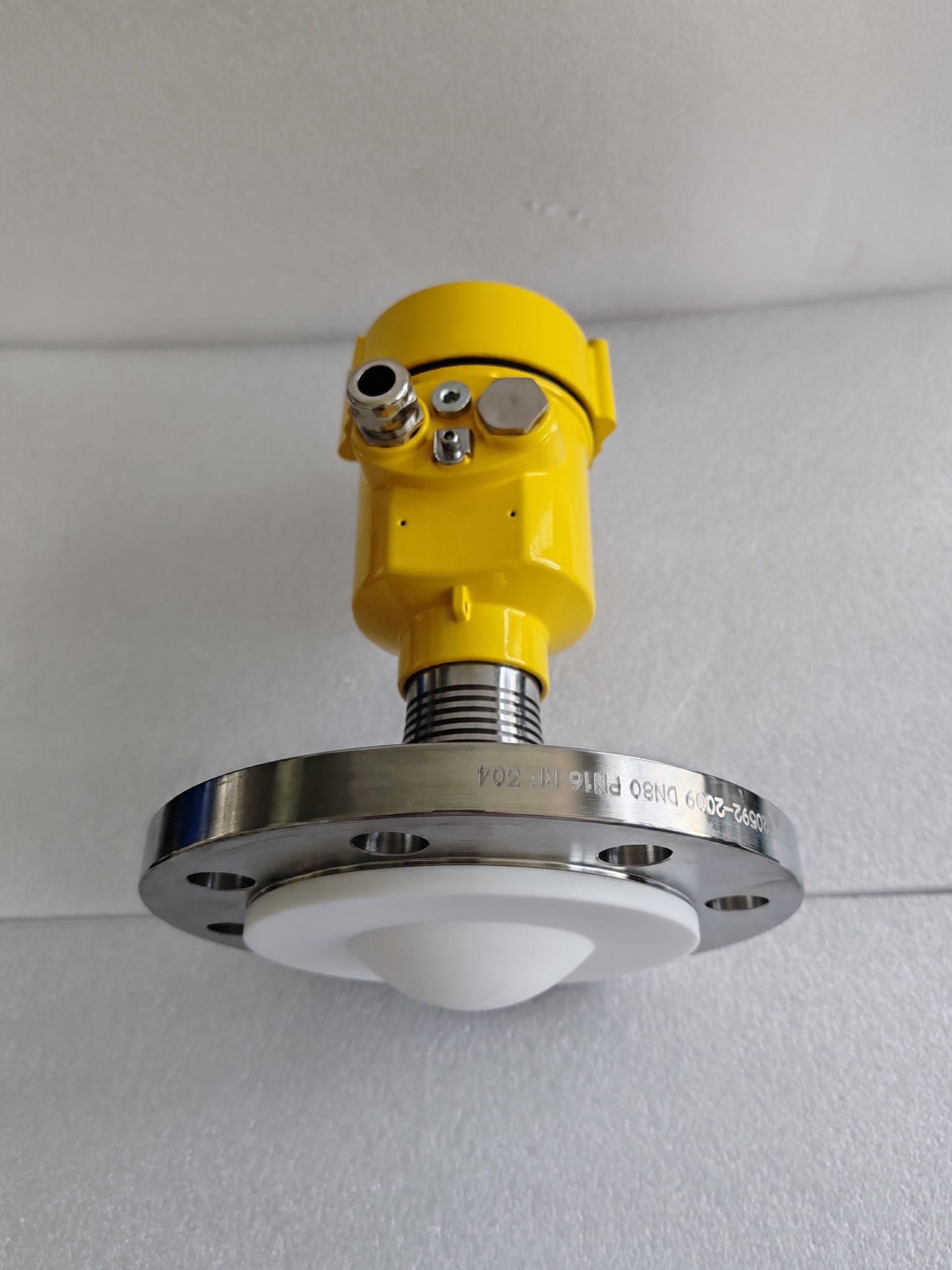

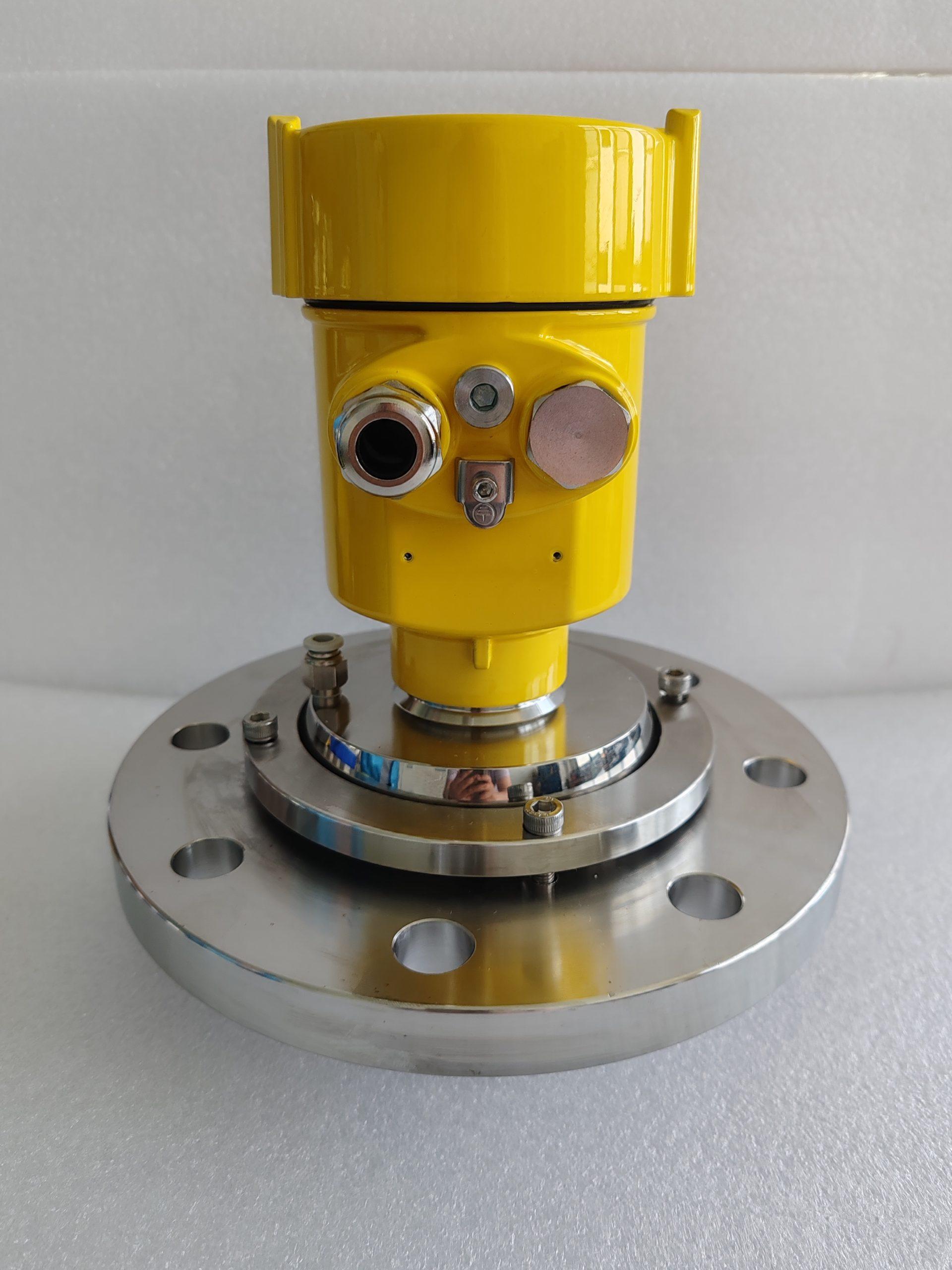

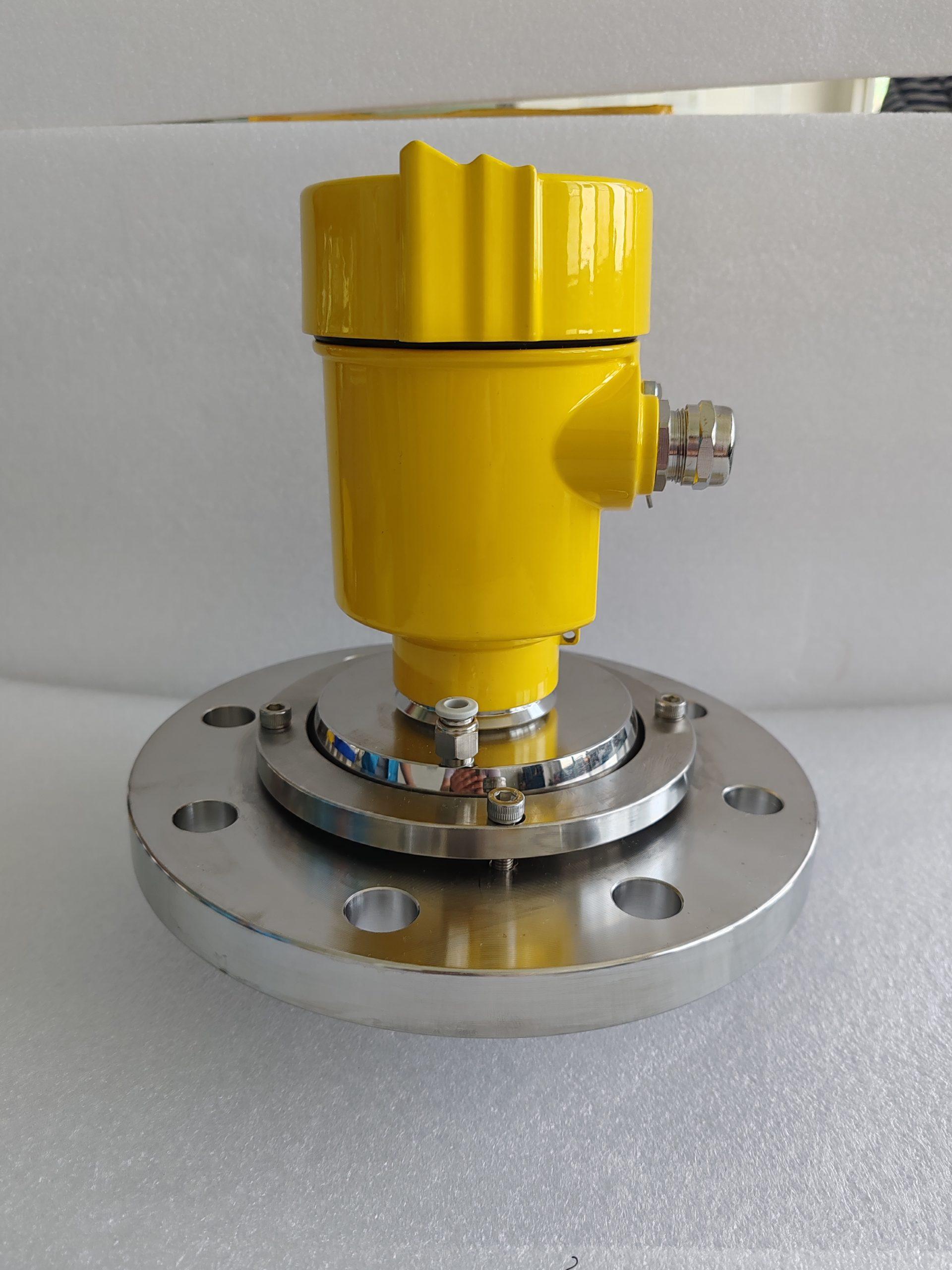

| Mounting | Threaded base or flange sealing |
| Parameter codes | A = range setting; B = low-position adjustment; C = high-position adjustment; D = blind-zone range |
Applications
- Liquid level in tanks with steam, foam or dust present
- Low-dielectric media measurement
- Solids and powder silos
- Process vessels with varying temperature and pressure
FAQ
How far can the 80 GHz radar level meter measure?
The maximum measuring distance is up to 70 m, using the WKD18 80 GHz FMCW sensor with a narrow beam and small antenna.
Does steam, dust or foam affect the measurement?
Per the feature list, measurement is unaffected by steam, dust, foam, and temperature and pressure variation — a key advantage of the 80 GHz FMCW principle.
Which KJD-80 model do I need?
The series includes KJD-80B, KJD-80D and KJD-80E. Contact us with your medium, vessel height, mounting and process conditions; we respond within 24 hours with a model recommendation and quote.
