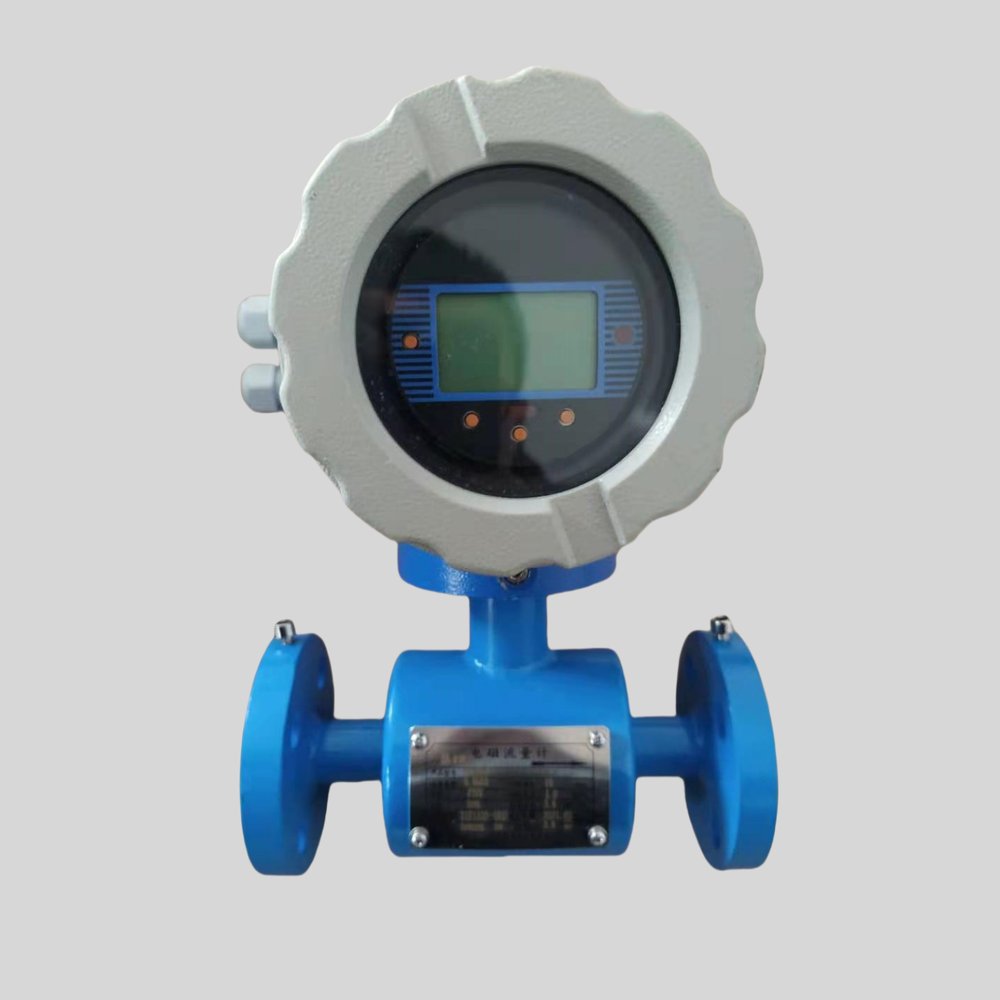

WKLD Electromagnetic Flow Meter DN10–DN3000
- Smart magnetic flowmeter for conductive liquids (conductivity ≥5uS/cm), DN10–DN3000
- Accuracy ±0.3% of reading (DN15–DN600, v≥1m/s); ±0.5% (DN700–DN3000); turndown 1500:1
- Max velocity 15m/s; pressure ratings up to 4.0MPa standard, 6.3/10MPa special order
- Liner options PTFE (F4), FEP (F46), PFA, neoprene, polyurethane; 7 electrode materials incl. Hastelloy B/C, Ti, Ta, Pt-Ir
- Outputs 4-20mA/pulse, RS232C, RS485, HART; supply 220VAC 50Hz or 24VDC
- Integral, remote, submersible-remote and explosion-proof versions
Tell us your medium, range and process connection — we reply within 24 hours.
Factory-direct from WELK Meters
- Small MOQ Welcome
- OEM / ODM Support
- Reply Within 24 Hours
Overview
The WKLD electromagnetic flow meter is a smart magnetic flowmeter that measures the volumetric flow of conductive liquids (conductivity ≥5uS/cm) in closed pipes from DN10 to DN3000. It works with flow velocities up to 15m/s, achieves ±0.3% of reading accuracy (DN15–DN600 at v≥1m/s) with a 1500:1 turndown, and delivers 4-20mA/pulse, RS232C, RS485 and HART outputs from a 220VAC 50Hz or 24VDC supply.
Built to standard JB/T 9248-1999, the WKLD has no moving parts and no flow obstruction, so pressure loss is negligible and maintenance is minimal. A wide choice of liners — PTFE (F4), FEP (F46), PFA, neoprene and polyurethane — combined with seven electrode materials lets the meter be matched to corrosive chemicals, slurries, sewage and clean water alike. The converter is available in square or round housings, and the sensor can be supplied as an integral unit, a remote (separated) version, a submersible-remote version, or an explosion-proof version.
For trade and utility applications WELK Meters also supplies WKLD-matched accessories: a batch/quantitative control cabinet for dosing and filling, a prepaid metering and settlement system, a flow alarm box, and a flow ticket printer box. Combined with the meter’s pulse and RS485 outputs, these allow the WKLD to be used as the core of batch-control and prepaid water/chemical dispensing stations.
Features
- Full bore, no moving parts — suitable for dirty, corrosive and abrasive conductive liquids
- Accuracy ±0.3% of reading (DN15–DN600, v≥1m/s); ±0.5% of reading (DN700–DN3000); low-velocity terms ±3mm/s for v<1m/s and ±4mm/s for v<0.8m/s
- Wide size range DN10–DN3000 with turndown 1500:1 and max velocity 15m/s
- Five liner materials and seven electrode materials for chemical compatibility matching
- Outputs: 4-20mA/pulse, RS232C, RS485, HART communication
- Integral, remote, submersible-remote and explosion-proof sensor versions; square or round converter
- Optional batch-control cabinet, prepaid settlement system, flow alarm box and ticket printer box
Specifications
| Item | Value |
|---|---|
| Model / series | WKLD (smart type) |
| Standard | JB/T 9248-1999 |
| Nominal diameter | DN10–DN3000 |
| Max flow velocity | 15m/s |
| Accuracy | ±0.3% of reading (DN15–DN600, v≥1m/s); ±0.5% of reading (DN700–DN3000); ±3mm/s (v<1m/s); ±4mm/s (v<0.8m/s) |
| Turndown ratio | 1500:1 |
| Medium conductivity | ≥5uS/cm |
| Flow range (examples) | Φ10: 0.16–2.5 m³/h … Φ2600: 1910.38~191037.6 m³/h (per sizing table) |
| Power supply | 220VAC 50Hz or 24VDC |
| Outputs | 4-20mA / pulse, RS232C, RS485, HART |
| Sensor versions | Integral, remote, submersible-remote, explosion-proof |
Pressure rating by pipe size
| Nominal diameter | Working pressure |
|---|---|
| DN15–DN50 | 4.0MPa |
| DN15–DN600 | 1.6MPa |
| DN200–DN1000 | 1.0MPa |
| DN700–DN3000 | 0.6MPa |
| Special order | 6.3MPa / 10MPa |
Liner and electrode options
| Option | Available materials |
|---|---|
| Liner | PTFE (F4), FEP (F46), PFA, neoprene, polyurethane |
| Electrode | 316L, Hastelloy B, Hastelloy C, titanium (Ti), tantalum (Ta), Pt-Ir alloy, tungsten-carbide-coated stainless steel |
Applications
- Water supply and wastewater / sewage metering
- Corrosive chemical and acid/alkali dosing lines (Hastelloy / Ta / Pt-Ir electrodes)
- Slurries and abrasive conductive liquids (polyurethane liner)
- Batch dosing and filling stations with the quantitative control cabinet
- Prepaid water/chemical dispensing with the prepaid metering and settlement system
FAQ
What liquids can the WKLD electromagnetic flow meter measure?
Any conductive liquid with conductivity ≥5uS/cm — water, sewage, acids, alkalis and conductive slurries. Liner and electrode materials are selected to match your medium; tell us the fluid and concentration and we will recommend the right combination.
Which output should I choose for my control system?
The WKLD converter offers 4-20mA and pulse outputs plus RS232C, RS485 and HART communication, powered from 220VAC 50Hz or 24VDC. For batch control or prepaid dispensing, pair it with the optional batch-control cabinet or prepaid settlement system.
How do I get a quote?
Contact us with your medium, pipe size (DN), working pressure and flow range; we respond within 24 hours with a configured model and quotation.
