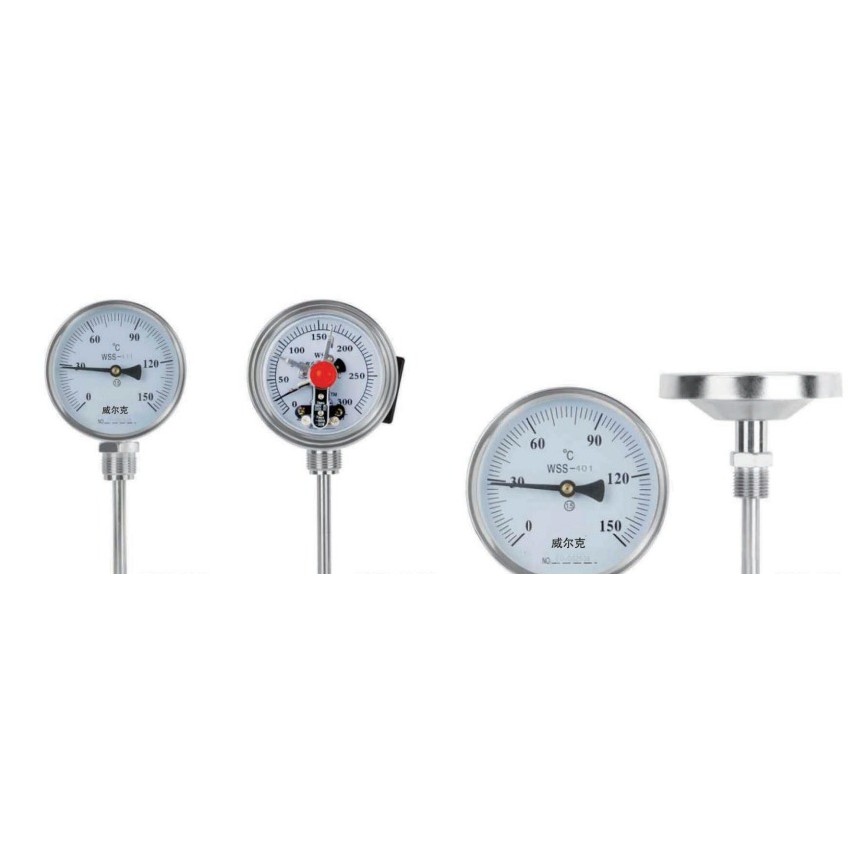

WSS Series Bimetal Thermometer
- Dial sizes Φ60, Φ100 and Φ150 mm
- Measuring ranges from -80–40 °C up to 0–500 °C (per model table)
- Accuracy class 1.5
- Radial, axial and electric-contact (switching/alarm) forms
- Stem Φ6 / Φ10; threads M16×1.5, M20×1.5, M27×2, NPT
Tell us your medium, range and process connection — we reply within 24 hours.
Factory-direct from WELK Meters
- Small MOQ Welcome
- OEM / ODM Support
- Reply Within 24 Hours
Overview
The WSS series bimetal thermometer is a mechanical dial thermometer for local temperature indication in industrial processes, covering measuring ranges from -80–40 °C up to 0–500 °C (depending on model) with accuracy class 1.5. It is available with Φ60, Φ100 and Φ150 mm dials and requires no external power supply.
The series includes radial (e.g. WSS-411), axial (e.g. WSS-401) and electric-contact (e.g. WSS-411X) forms. The electric-contact version provides switching/alarm output at a set temperature, making it suitable for simple on/off temperature control and alarm duties. Process connections include M16×1.5, M20×1.5, M27×2 and NPT threads, with stem diameters of Φ6 or Φ10 per the model table.
Model numbers follow the dial size: WSS-301/302/303, 311/312/313, 381/382/383 (Φ60 dial); WSS-401/402/403, 411/412/413, 481/482/483 (Φ100 dial); WSS-501/502/503, 511/512/513, 581/582/583 (Φ150 dial). Contact WELK Meters with your range, dial size and connection to get the exact model recommendation.
Features
- Three dial sizes: Φ60, Φ100, Φ150 mm
- Wide choice of ranges from -80–40 °C up to 0–500 °C per model table
- Accuracy class 1.5
- Radial, axial and electric-contact mounting forms
- Electric-contact type provides switching/alarm at a set temperature
- Thread options M16×1.5, M20×1.5, M27×2, NPT
Specifications
| Parameter | Value |
|---|---|
| Dial diameter | Φ60 / Φ100 / Φ150 mm |
| Measuring ranges | From -80–40 °C up to 0–500 °C (per model table) |
| Accuracy class | 1.5 |
| Stem diameter | Φ6 / Φ10 (per table) |
| Process connection | M16×1.5, M20×1.5, M27×2, NPT |
| Forms | Radial (WSS-411 type), axial (WSS-401 type), electric-contact (WSS-411X type) |
| Model series | WSS-301…383 (Φ60); WSS-401…483 (Φ100); WSS-501…583 (Φ150) |
Applications
- Local temperature indication on industrial process equipment
- Pipelines, tanks and vessels
- Temperature switching and alarm duties (electric-contact version)
FAQ
What temperature ranges does the WSS bimetal thermometer cover?
Per the model table, ranges run from -80–40 °C up to 0–500 °C, with accuracy class 1.5. Tell us your operating temperature and we will recommend the right range and model.
Can the WSS thermometer switch a pump or alarm?
Yes. The electric-contact form (e.g. WSS-411X) provides switching/alarm output at a set temperature, in addition to local dial indication.
How do I get a quote for the WSS series?
Contact us with your medium, temperature range, dial size, stem length and process connection; we respond within 24 hours with a quotation.
